BS 5852 Furniture Testing Equipment For Ignitability Test

Name: BS 5852 Furniture Testing Equipment For Ignitability Test
Brand: DAXIAN
Price: 1 USD

Wholesale BS 5852 Furniture Testing Equipment For Ignitability Test from china suppliers

Brand Name : DAXIAN

Model Number : DX8038

Certification : BS 5852， ISO8191-1&2， EN1021

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 15 sets per month

Delivery Time : 20 days after order confirmed

Packaging Details : Standard export wooden case

Standards : BS 5852， ISO8191-1&2， EN1021

Independent Gas Control Cabinet Size : 570*400*420mm

Environmental Temperature : 10ºC~30ºC

Relative Humidity : 15.0%~80%

Power : AC 220V/50HZ

Warranty : 12 Months

Contact Now

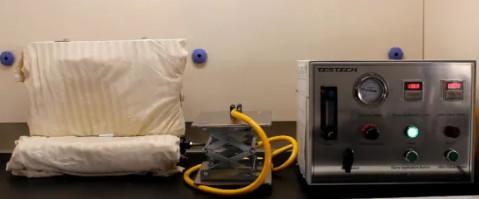

BS 5852 Furniture Testing Equipment Upholstered Furniture Ignitability Tester ISO8191-1&2

Introduction:

The is an analog cigarettes and matches as flame ignition source for resistance to ignition of upholstered furniture conduct test methods and evaluationThis section applies to public places with mattresses, sofas and other upholstered furniture resistance to ignition test and evaluation, furniture Soft package resistance to ignition.

Test to assess the ignitability of material combination, such as covers and fillings used in upholstered seating when subjected to a smouldering cigarette as an ignition source.

Standards:

BS 5852,ISO8191-1&2 ,EN1021.

Features:

1.The test rig is made of stainless steel plate which is corrosion resistant.

2.Independent gas control cabinet.

3.Test rig dimension:450mm X 150mm and 450mm X300mm;450mm X 450mm and 450mm X300mm

4.Equipped with metal needles for puncturing cigarettes.

5.The wire mesh of diagonal length is 28mm.

Butane Flame Control System

6.Stainless steel burner, external diameter 8mm ± 0.1mm, inner diameter 6.5mm ± 0.1mm, length 200 ± 5mm.
7.The burner angle can be adjusted horizontally and vertically.
8.Imported gas pressure regulating valve.
9.Precision gas gressure gauge.
10.The accuracy of the timer is 1 s.
11.The environmental temperature of the test is 10ºC~30ºC and the relative humidity is 15.0%~80%.
12.Independent gas control cabinet.Size 570*400*420mm.
13.Imported gas flow meter accurately displays gas flow rate of 0-500 ml/min.
14.With functions of 1 hour reminder.
15.Imported needle valve accurately control gas flow rate.

Remarks:Customer have to prepare butane.
